Security Secondary Glazing System
Add a title
This is the text area for this paragraph. To change it, simply click here and start typing. Once you've added your content you can customize the design by choosing various colors, fonts, font sizes and bullets.
Blast and Ballistics Profile 1 Heavy Duty / Security Secondary Glazing System
· A heavy duty fixed frame unit which provides blast protection to C25 (100kgs @ 25m) and forced entry to levels SR1 and SR2.
· The frame can be shaped or curved to a full circle
· 20mm glass edge cover
· Concealed room side fixing channel
· Rectangular frames may be linked with a colour matched aluminium transom section
· Standard colour semi gloss white
· All standard RAL colours PPC and woodgrain/anodised also available to customer specification
Gazing Options:
Glass: 6mm thick – 12.04mm thick
Frames: Curved head, jamb or full circle – minimum radius of 500mm
Dimensions:
Maximum Recommended Frame sizes:
Fixed Pane 2000mm wide x 3000mm high
Minimum dimensions – 300mm wide x 300mm high
Blast and Ballistics Profile 2 Heavy Duty / Security Secondary Glazing System
· A heavy duty demountable frame unit which provides blast protection to C25 (100kgs @ 25m) and forced entry to levels SR1 and SR2.
· The frame can be shaped or curved to a full circle
· Glazed panels are attached with machine screws to permit occasional removal for cleaning and maintenance
· 20mm glass edge cover
· Fixings concealed within the frame
· Frames can be coupled vertically or horizontally
· Standard colour semi gloss white
· All standard RAL colours PPC and woodgrain/anodised also available to customer specification
Gazing Options:
Glass: 6mm thick – 12.04mm thick
Frames: Curved head, jamb or full circle – minimum radius of 750mm
Dimensions:
Maximum Recommended Frame sizes:
Fixed Pane 2000mm wide x 3000mm high
Minimum dimensions – 300mm wide x 300mm high
Special Shapes & Sizes

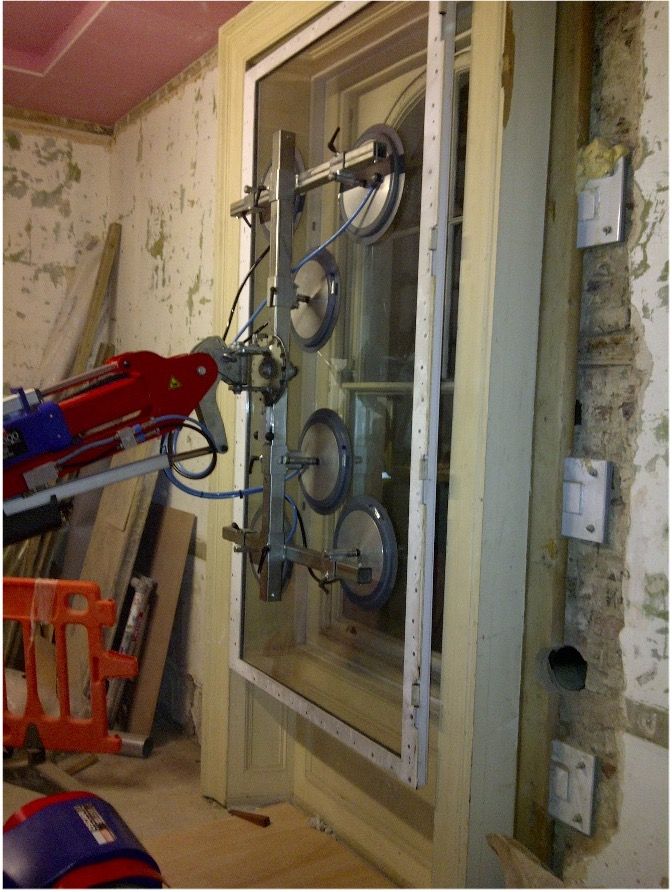

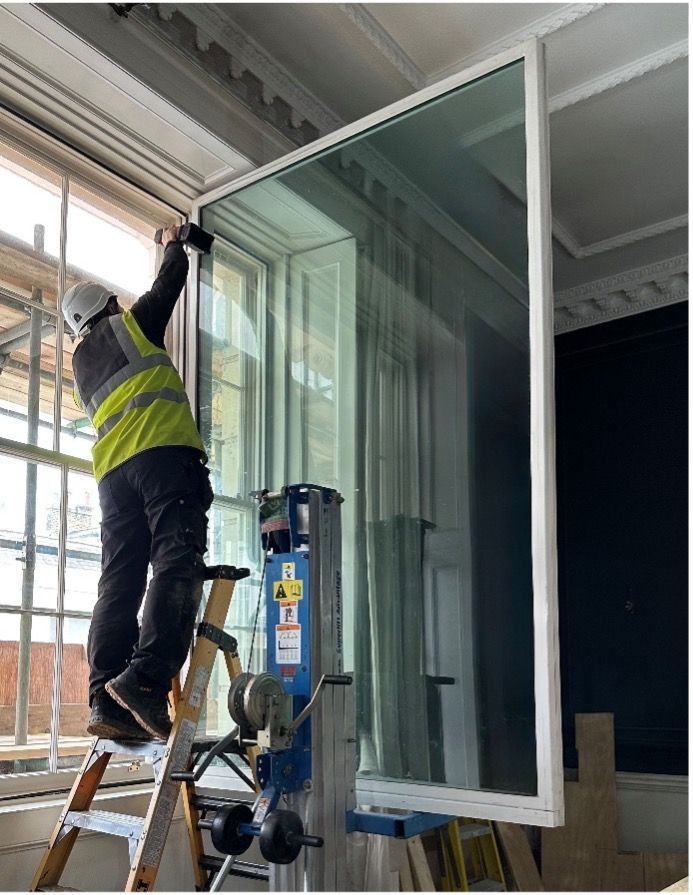

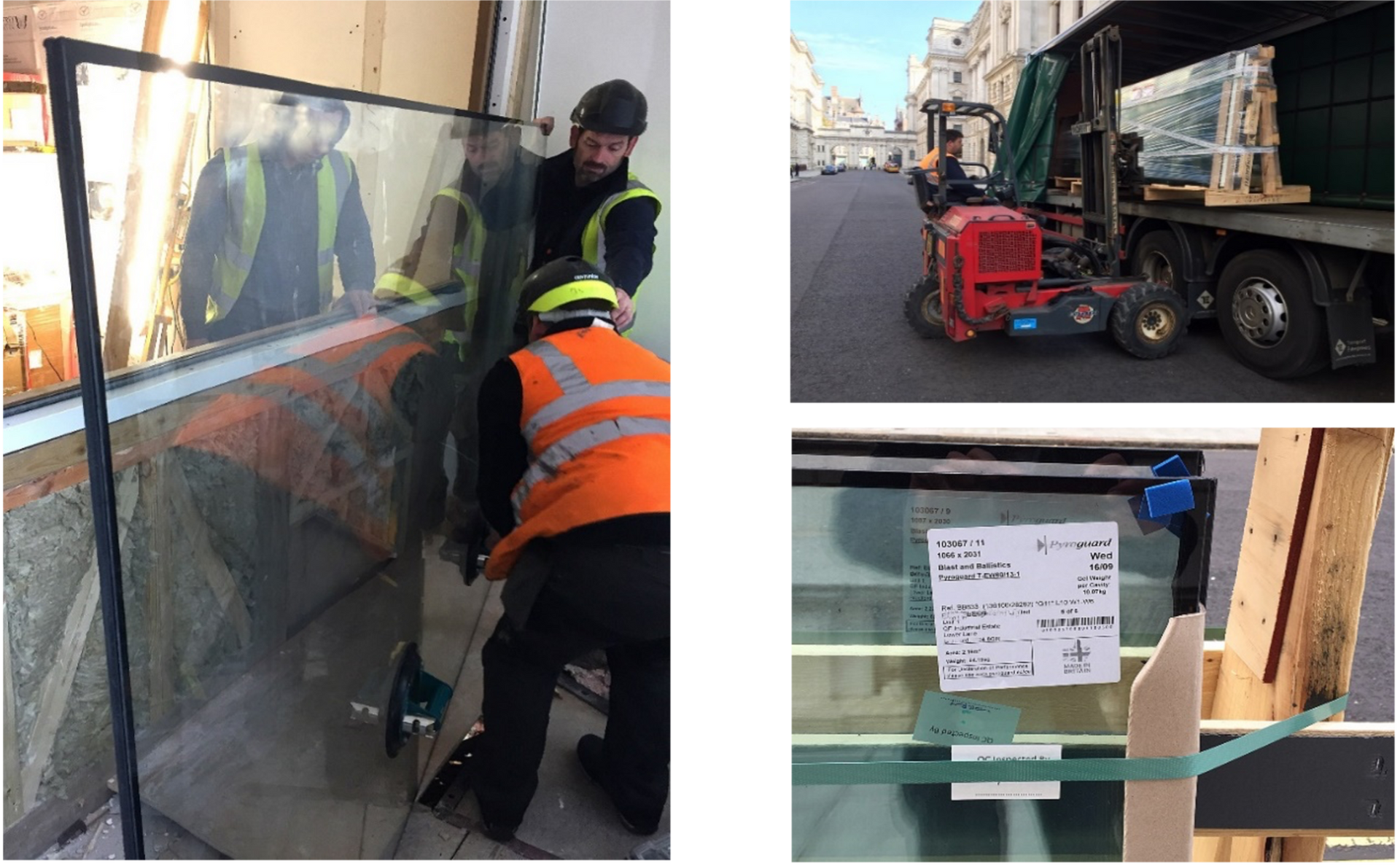

Installation
To maintain the integrity and performance of a blast product, it is very important to ensure that it is installed correctly. This means that it should be surveyed to allow for enough clearance to fit insulated material and fire mastics around its perimeter, that it is fixed with the appropriate fixings and that the building substrate is suitable to accept the window.
Maintenance and Cleaning
In fixed window applications the glass can be removed for future maintenance and cleaning and opening windows simply opened on their respective hinges
