High Voltage Protection Canopies

Technical Data Sheet


 Product Description

Our Protective Canopies are used particularly in high-voltage applications where this is a risk of falling objects. They allow work to be completed as normal whilst reducing risk to personnel.

  Applications

Main application of the canopy is to support a typical hollow bushing insulator, or similar, falling from height and anticipating that it falls on its end. This provides protection for the most onerous loading onto the roof panel. A maximum of 100mm internal deflection of the roof is the proposed limit after an event. A copper earthing point is installed in the event that the canopy becomes live following impact.

Features

  • Fully fabricated and factory finished
  • Heavy duty 200mm diameter wheels to allow the unit to be moved easily into position
  • Swivel/brake to allow for manoeuvrability


Model 1


To withstand an impact of 60kg falling from a height of 20 metres.


Model 2


To withstand an impact of 90kg falling from a height of 20 metres.


Bespoke options are also available to suit other weights and shapes of objects.

Dimensions


We have standard sizes available as follows.

1.   1246mm x 1196mm x 2100mm high

2.   1254mm x 1204mm x 2250 high

3.   Special sizes available upon request for both Model 1 and Model 2.

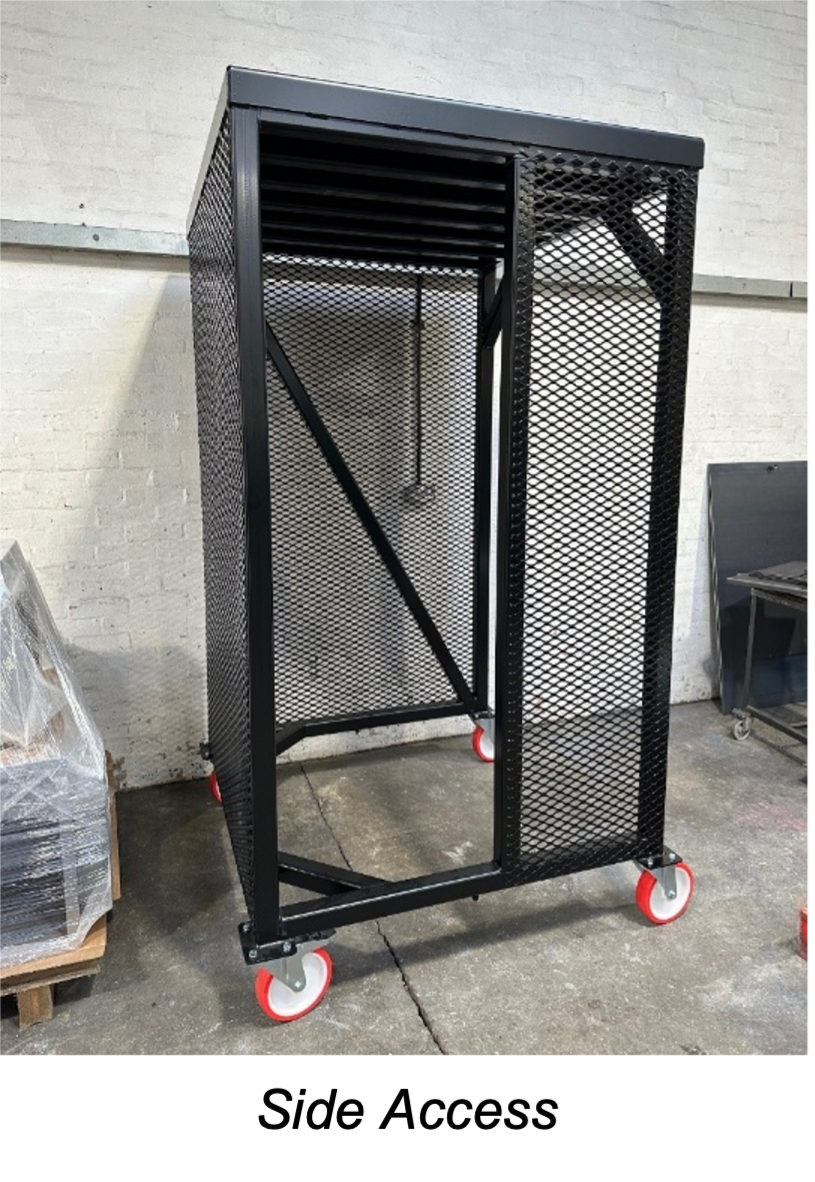

Side entrance opening access measures 600mm wide.


Before and After

Of particular note is the
construction of the roof
profiles and outer shell
which is a primary
element subject to falling
objects. Within the
third-party independent
calculations, this element
in particular is clearly
detailed.

Read More
PROFILE

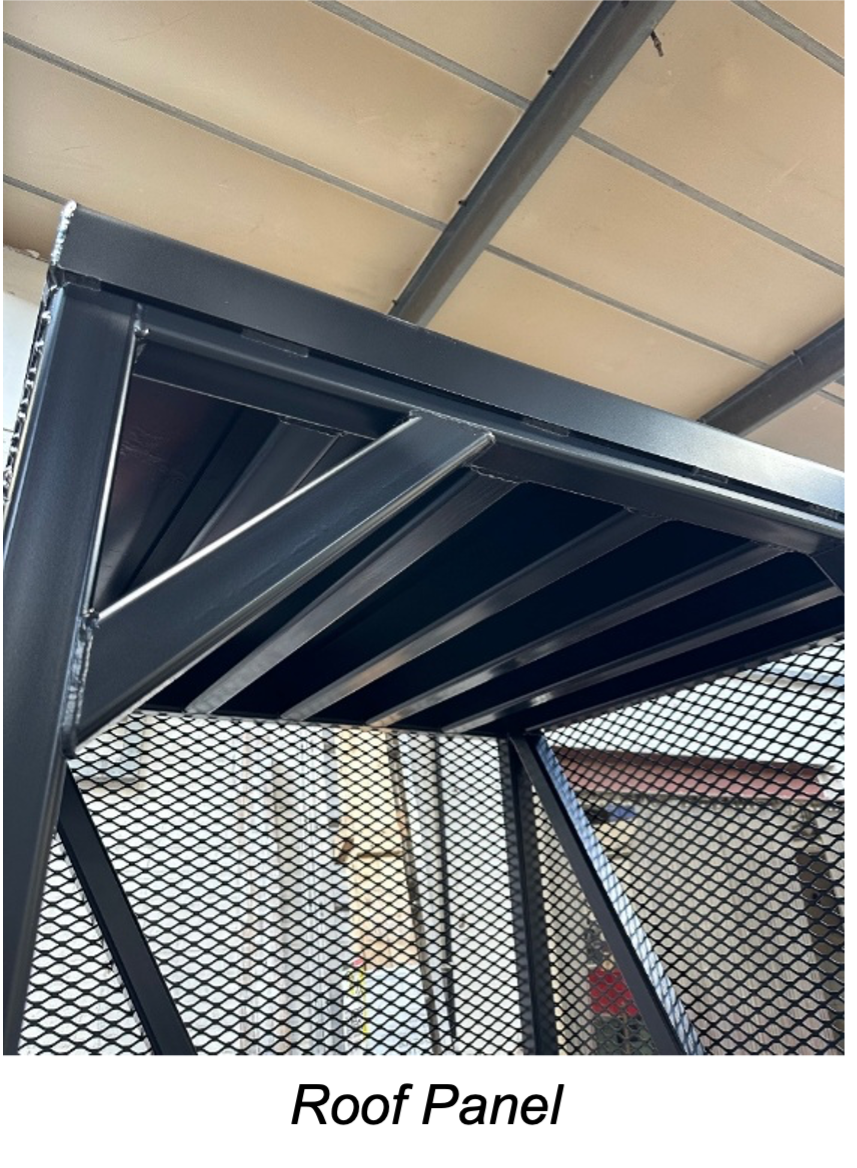

Manufactured from SHS Profiles including specially detailed roof panel supports
Roof Panel folded for impact resistance from higher grade material
Protective side mesh in expanded steel sheet
FINISHES
Factory finish to a standard RAL PPC colour
Special finishes available upon request
AVAILABLE SIZES
Standard Sizes available – 2250mm tall and 2100mm tall
Special sizes available upon request
FEATURES
Includes copper earthing handle should the canopy become live following or during an event
Includes 4 No. heavy duty swivel wheels with brakes
SUPPORTING CALCULATIONS
Supported by independent third-party calculations

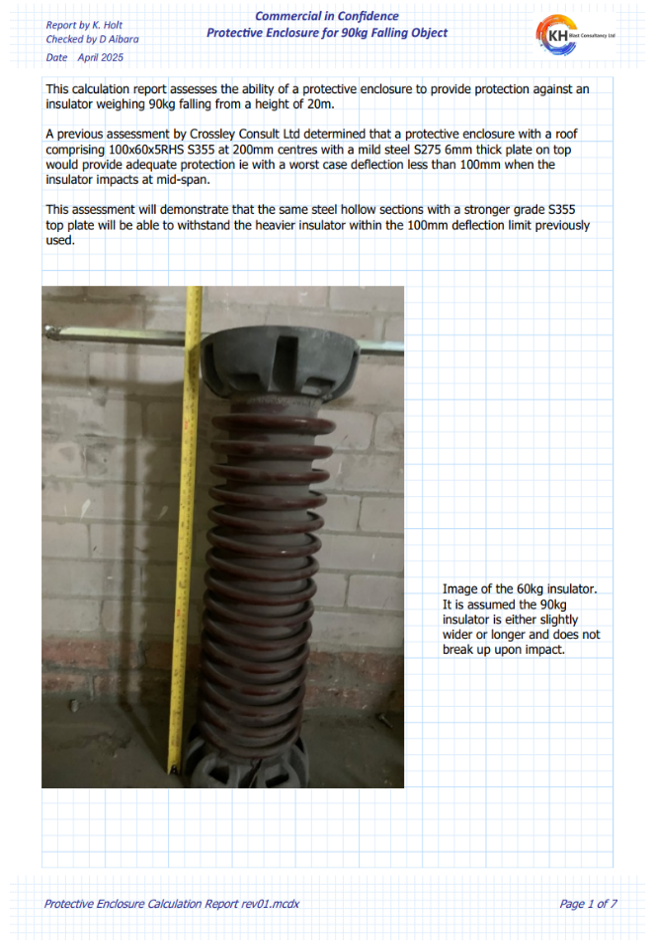

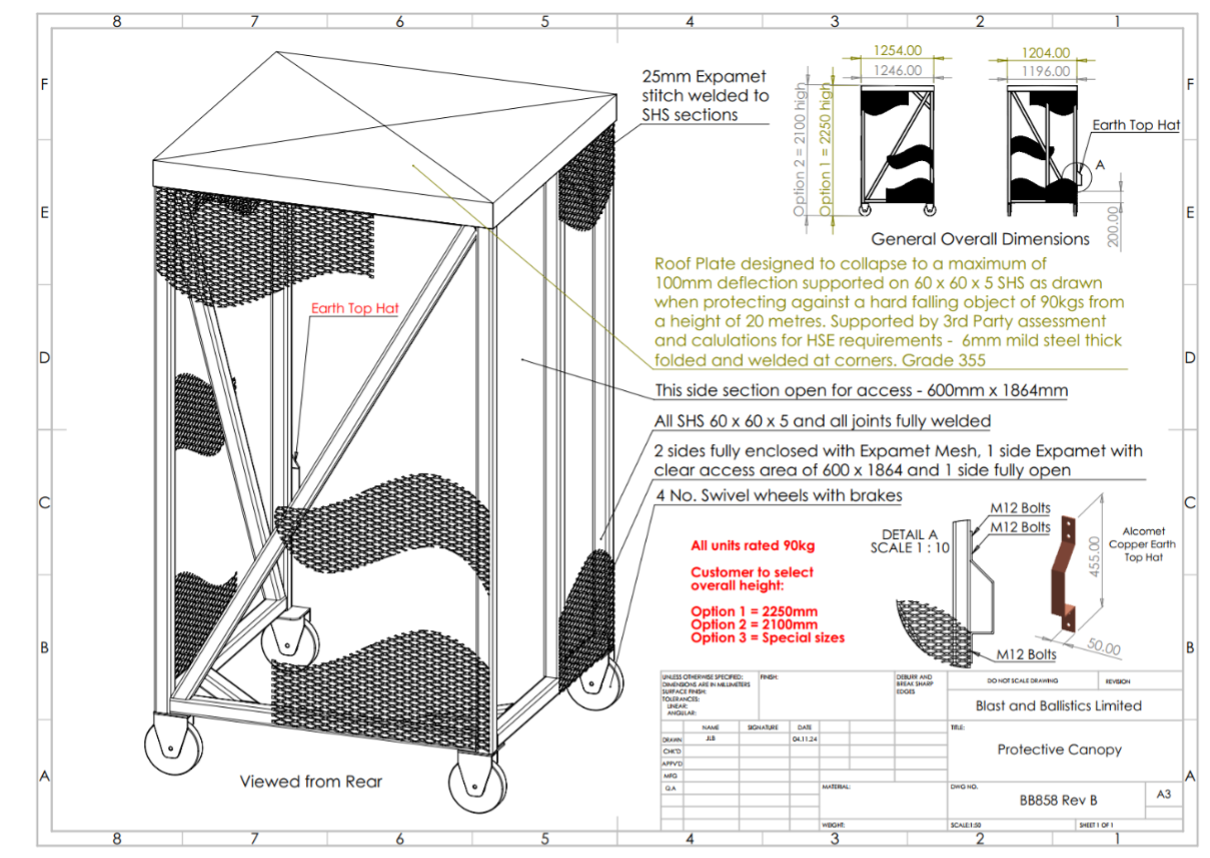

Sample Drawings & Extract from Third Party Independent Calculations
